Published by Sudsy Paws on July 27, 2026.
A dedicated stainless steel dog wash station can make frequent bathing more contained and repeatable. A good result starts with the site, the correct plumbing plan, a stable entry, and a calm first-use routine.

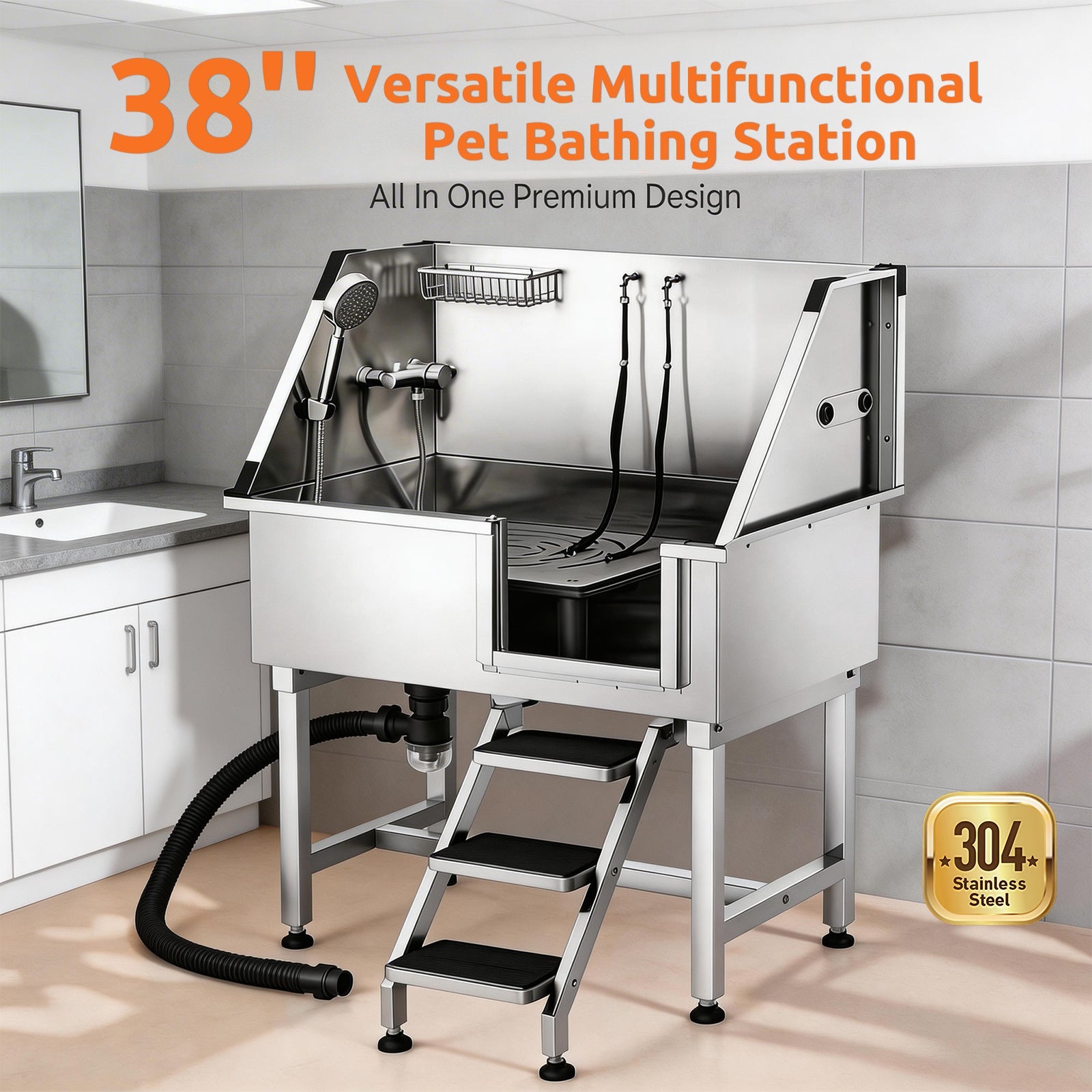

Product accuracy note: this guide is based on the real Sudsy Paws product images supplied for 34-inch and 38-inch configurations. Those images show a stainless basin, splash walls, an open support frame, leveling feet, mixer, handheld sprayer, basket, restraint points, raised platform, drain assembly, and drain hose. The depicted 38-inch configuration uses a separate open three-step access ladder. The images do not confirm a built-in dryer, electronic controls, storage cabinet, or the parts included with every SKU. Use the manual for the exact model you receive.
Before you begin
Treat this article as a planning and use guide, not a substitute for the product manual, an installation drawing, or local code. Confirm that the product page, carton label, component list, and manual all refer to the same model. Use a qualified plumber whenever water supply or waste connections must be added or changed.
1. Measure the room and delivery route
Measure the intended location and the full route from the delivery point. Include doors, hallways, stairs, elevators, corners, and any threshold the packaged station must pass through.
- Choose a stable, level floor suitable for a wet area.
- Allow working room around the basin, frame, water connections, drain hose, and future service points.
- Keep a clear path for the caregiver and the dog.
- If the selected configuration uses the separate ladder, allow enough dry, level floor space to align it with the front entry.
- Plan splash control, lighting, ventilation, and nearby towel storage without blocking access.
2. Inspect the delivered components
Before installation, compare every component with the packing list and manual. Check the basin and splash walls for shipping damage. Inspect the frame, leveling feet, mixer, sprayer, braided hose, basket, restraint hardware, drain assembly, drain hose, platform, and any model-specific entry parts. Do not install a bent, cracked, loose, or incomplete component.
3. Dry-position and level the station
Place the empty station in its intended orientation before making permanent connections. Make sure the frame is fully supported and does not rock. Adjust the leveling feet only as directed by the manual. Recheck clearance for the caregiver, plumbing, cleaning, and dog entry.

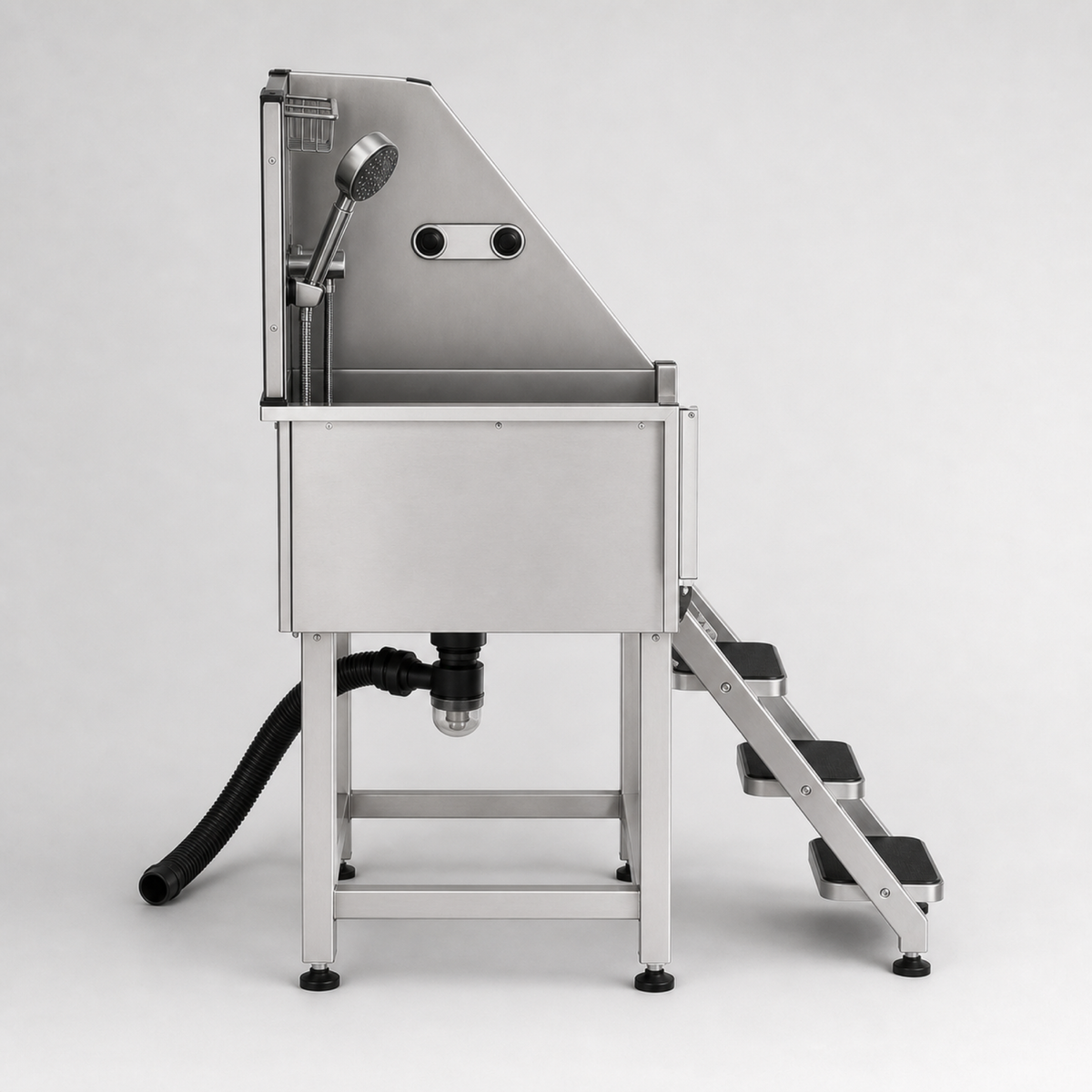

For a configuration with the pictured ladder, set the separate three-step frame on a stable, dry surface and align it squarely with the front opening. The ladder has three distinct black treads with open space between them; it is not a continuous ramp. Do not assume it folds, attaches, or ships with another model unless the selected SKU documentation says so.
4. Connect water and drainage correctly
The product images show the station-side mixer, handheld sprayer, underside drain assembly, and black corrugated drain hose. They do not establish building-side connector sizes, drain slope, venting, backflow requirements, or an approved outdoor installation. A qualified plumber should follow the matching manual and local code.
- Protect finished surfaces while connections are made.
- Route the drain hose so it is not crushed, sharply kinked, or placed where it creates a trip hazard.
- Keep service connections accessible for inspection.
- Do not identify the black corrugated hose as a dryer hose; it is shown connected to the drain assembly.
5. Confirm the bathing platform and entry setup
The supplied imagery shows an open-basin configuration for a larger dog and a raised black slotted platform for a smaller dog. It does not prove the adjustment mechanism, number of positions, or load rating. Install or reposition the platform only as described in the product manual.
6. Run a no-dog water test
Before the first bath, run water with the basin empty. Test the mixer and handheld sprayer, then inspect visible connections for leaks. Confirm that water leaves the basin freely through the intended drain path. Stop and correct movement, leaking, backup, or loose hardware before bringing a dog into the station.
7. Introduce the dog before bathing
Let the dog inspect the dry station first. Practice calm entry and exit with treats and supervision. Assist dogs that hesitate on steps or have limited mobility; never pull a dog upward by a collar or restraint strap. If the dog cannot use the pictured ladder safely, choose another assisted entry method recommended by the product manual or a veterinary professional.
8. Follow a calm washing sequence
- Brush loose hair before the bath and place dog-safe shampoo, towels, and treats within reach.
- Test the water with your hand before wetting the coat.
- Wet the dog gradually with the handheld sprayer, avoiding the eyes and ear canals.
- Use dog-specific shampoo according to its label and rinse thoroughly.
- Keep one hand and your attention on the dog throughout the bath.
- Towel blot after rinsing. The supplied product images do not confirm an integrated drying system.
Use restraint points only as directed by the manual and only under active supervision. They should help maintain position, not suspend, choke, or force the dog.
9. Clean after every bath
Remove loose hair before it reaches the drain. Rinse shampoo residue from the basin, platform, splash walls, basket, and reachable fixtures. Wipe surfaces with a soft cloth or non-abrasive sponge and a cleaner approved by the product manual. Avoid unapproved abrasive pads and harsh chemicals that could damage stainless surfaces, seals, hoses, or coatings.
10. Know when to stop and call a professional
Stop using the station if the frame moves, the ladder becomes unstable, a connection leaks, the drain backs up, a hose or fitting is damaged, or hardware needed for safe entry becomes loose. Keep the dog away from the station and contact the appropriate plumber or service professional. Do not improvise a repair while a dog is in the basin.
Continue planning with Sudsy Paws
Next, read the dog washing options comparison and the dog wash station FAQ. Before ordering, match the product page, pictured configuration, dimensions, included parts, and installation manual to the exact SKU you intend to purchase.
