A dog wash station can look level and still cause trouble. A slight side-to-side lean can leave rinse water pooling in a basin corner, while a rocking frame makes a large dog less comfortable stepping in and out. Knowing how to level a dog wash station means setting the frame for stable use first, then confirming that the basin and drain perform as intended.
This is not a cosmetic setup step. Leveling affects footing, drainage, hose routing, and the strain placed on plumbing connections. Take the time to do it before the first bath, while the basin is empty and every foot, fitting, and drain connection is easy to reach.
Start With the Floor, Not the Wash Station
Most dedicated dog wash areas are in garages, laundry rooms, mudrooms, utility rooms, or covered outdoor spaces. These surfaces are often durable, but they are not always flat. Garage slabs commonly slope toward the overhead door. Older concrete can have low spots, and tile floors may vary at grout lines.
Sweep the installation area thoroughly before assembling or positioning the station. A small stone, drywall screw, or buildup of debris under one leveling foot can create a wobble that looks like a frame problem. Check for obvious dips, raised seams, soft flooring, or standing moisture. The station needs a solid surface capable of carrying its weight, the dog’s weight, and a basin full of water.
Do not use loose wood scraps, cardboard, folded shop rags, or improvised shims under the feet. They compress, shift when wet, and make inspection harder. If the floor has a severe defect, address the surface or use a stable, purpose-made solution appropriate for the location before installing the station.
What You Need to Level a Dog Wash Station
A basic setup requires a bubble level, an adjustable wrench, and a clean rag. A 24-inch level is useful across the basin, although a shorter level works if it can rest on a straight, stable surface. Keep a flashlight nearby for inspecting the drain path beneath the basin.
If your station has adjustable leveling feet on an open square-tube support frame, confirm that all feet are installed fully and that their threads are clean. The feet should contact the floor directly, not the edge of a floor drain, a raised threshold, or a flexible mat.
It also helps to have a second person for the stability check. One person can hold the frame steady while the other watches the feet and makes adjustments. The work itself is simple, but a large stainless steel basin is easier to position safely with help.

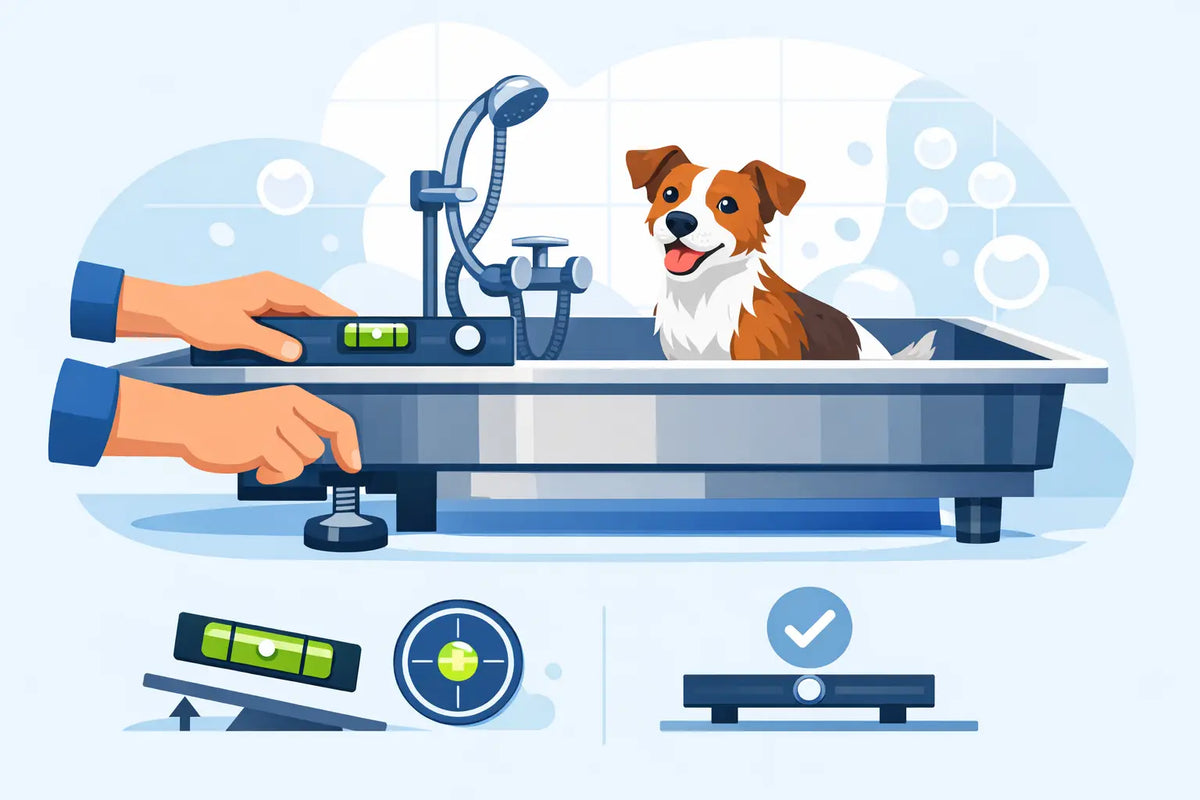

How to Level a Dog Wash Station Step by Step
1. Place the station in its final service position
Move the wash station into the location where it will be used and serviced. Leave enough clearance to access the drain assembly, hot-and-cold water connections, handheld sprayer hose, and rear or side plumbing path. A station that is level but pushed tightly against a wall can become difficult to inspect when a hose clamp needs tightening later.
Before adjusting the feet, make sure the drain hose can reach its intended waste connection without being stretched, sharply bent, pinched behind the frame, or routed uphill. The station’s position affects the drain just as much as the floor does.
2. Remove the wobble first
With the basin empty, press down gently on each front corner and then each rear corner. If the station rocks, one foot is not carrying weight. Identify the unsupported corner, then turn that leveling foot outward until it makes firm contact with the floor.
Adjust in small increments. A few turns can be enough to stop a wobble. Once the frame sits firmly on all feet, repeat the corner test. The goal is a frame that does not shift when a dog steps onto the anti-slip open-step ladder or changes position in the basin.
Do not try to solve a wobble by overtightening one foot far beyond the others. Excessive adjustment can twist the frame slightly or create an unstable stance. Bring each foot into contact, then make measured corrections from there.
3. Check side-to-side level across the basin
Place the bubble level across the top rim of the basin from left to right. If the bubble is off-center, raise the low side by extending the appropriate foot or feet. On a four-foot frame, small changes at both feet on the low side usually keep the frame more evenly supported than making one large correction at a single corner.
Recheck for rocking after every adjustment. Leveling is an iterative process: correct the bubble, verify all four feet are loaded, then check again. Stainless steel surfaces can reflect light in a way that makes a visual judgment unreliable, so let the level do the work.
4. Check front-to-back level
Set the level from the front rim toward the back rim. Correct any front-to-back lean with the front or rear leveling feet, again using small adjustments. A basin should generally sit level unless the manufacturer specifically instructs otherwise.
Do not intentionally pitch the entire wash station toward the drain. The basin is manufactured with its own internal contour and drain location. Tilting the frame to force faster drainage can make the dog’s footing feel uneven, place unnecessary stress on connections, and cause water to collect against one splash wall.
5. Lock the adjustment, if your feet include lock nuts
Some adjustable feet include a lock nut above the threaded foot. Once the station is stable and level, tighten each lock nut against the frame with an adjustable wrench. Hold the foot in place while tightening so you do not undo the height adjustment.
Not every configuration uses lock nuts. Confirm the hardware supplied with your station and follow its assembly instructions. The objective is the same: prevent normal vibration, cleaning, or repeated use from changing the setting.
Leveling the Frame Is Only Half the Drainage Check
A level basin does not guarantee a working drain. The waste line must still have a continuous, appropriate route to the approved drain connection. Corrugated drain hoses are practical because they accommodate installation layouts, but they need attention. Deep low loops, crushed sections, and uphill runs can slow drainage and trap debris.
With the station level, inspect the visible plumbing path from the basin outlet to the waste connection. Confirm that the hose is supported where needed, has no sharp kinks, and remains accessible for cleaning or replacement. Verify every clamp, threaded connection, gasket, and trap-related component required by your setup before running water.
Local plumbing requirements vary. A direct connection, standpipe arrangement, air gap, trap, venting provision, or other detail may be required depending on the building and installation method. If you are unsure whether your planned connection meets local code, use a qualified plumber. A level station cannot compensate for an improperly designed waste connection.
Test With Water Before You Add the Dog
After leveling and connecting the plumbing, run a controlled test. Start with a small amount of water and watch how it moves toward the basin drain. Then use the handheld sprayer to wet the basin walls and corners as you would during a bath. Look underneath the station while water is flowing and again a few minutes after shutting it off.
You are checking for three things: water that remains in an unexpected part of the basin, a slow or backing-up drain, and moisture around fittings or along the drain hose. A small amount of water near a drain opening may be normal depending on the basin design, but broad puddling or a persistent lean is a reason to recheck the feet and frame.
Test the station’s stability one more time after the water check. Apply light pressure at the rim and step ladder. The frame should stay planted, the ladder should sit securely, and no foot should lift from the floor. Never use the wash station with a loose frame, leaking waste connection, or unstable access step.
Common Leveling Mistakes That Create Bigger Problems
The most common mistake is leveling only from the top rim and never checking whether all feet contact the floor. A perfectly centered bubble does not help if the frame rocks under load. The second is using the adjustable feet to compensate for a poorly planned drain route. Keep the basin level and correct the plumbing path separately.
Another mistake is skipping the water test because the drain assembly looks tight. Visible plumbing is an ownership advantage only if you inspect it. Water can reveal a loose clamp, a gasket that shifted during assembly, or a hose slope problem that is not obvious when the system is dry.
Finally, avoid treating leveling as a one-time task forever. Recheck the station after it has been used several times, especially if it sits on a concrete slab that sees temperature changes or if the station was moved for cleaning. A quick level check takes minutes and protects a much larger investment in a clean, reliable bathing area.
A properly leveled dog wash station should disappear into the routine: the dog enters on steady anti-slip treads, rinse water finds the drain, and the open frame leaves the important parts visible when you need to inspect them. That is the kind of setup that keeps bath day controlled instead of turning it into another household repair project.
